Punto (KPoint). More...

#include <Pnt.h>

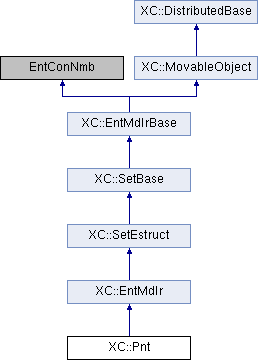

Inheritance diagram for XC::Pnt:
XC::EntMdlr XC::SetEstruct XC::SetBase XC::EntMdlrBase XC::MovableObject XC::DistributedBase

Public Member Functions

 Pnt (Preprocessor *m, const Pos3d &pto=Pos3d())
 Constructor.

 Pnt (const std::string &nombre="", Preprocessor *m=nullptr, const Pos3d &pto=Pos3d())
 Constructor.

SetEstructgetCopy (void) const
 Virtual constructor.

virtual unsigned short int GetDimension (void) const
 Return the object dimension (0, 1, 2 or 3).

BND3d Bnd (void) const
 Returns the object BND.

bool tieneNodo (void) const
 Returns true if the point owns a node (is meshed).

int getTagNode (void) const
 Return node's tag.

NodegetNode (void)
 Return point's node.

virtual void genMesh (meshing_dir dm)
 Creates mesh.

const Pos3d & GetPos (void) const
 Returns the object position.

Pos3d & Pos (void)
 Returns the object position.

void setPos (const Pos3d &pos)
 Sets the object position.

Vector3d VectorPos (void) const
 Returns the position vector of the point.

void inserta_linea (Edge *l) const

void borra_linea (Edge *l) const

const std::set< const Edge * > & EdgesTocan (void) const
 Return the list of the lines that begin or end at the point.

const size_t getNLines (void) const

std::set< const Edge * > EdgesExtremo (void) const
 Returns the lines that start o finish in this point.

const std::string & NombresEdgesTocan (void) const
 Returns the names of the surfaces that touch the line (neighbors). More...

bool Toca (const Edge &l) const
 Returns true if the line starts or ends in this point.

bool Extremo (const Edge &l) const
 Returns true if the point is an end of the edge.

bool Toca (const Face &s) const
 Returns true if the points touches the surface.

bool Toca (const Body &b) const
 Returns true if the punto toca al cuerpo.

double DistanciaA2 (const Pos3d &pt) const
 Returns the squared distance to the position being passed as parameter.

void Mueve (const Vector3d &)
 Moves the point (used by XC::Set only). More...

void Transforma (const TrfGeom &trf)
 Applies to the point the transformation being passed as parameter.

void Transforma (const size_t &indice_trf)
 Applies to the point the transformation identified by the index being passed as parameter.

std::set< SetBase * > get_sets (void) const
 Returns the sets a los que pertenece este punto.

void add_to_sets (std::set< SetBase * > &)
 Adds the point to the set being passed as parameters.

- Public Member Functions inherited from XC::EntMdlr
 EntMdlr (Preprocessor *m, const size_t &i=0)
 Constructor.

 EntMdlr (const std::string &nombre="", const size_t &i=0, Preprocessor *m=nullptr)
 Constructor. More...

 EntMdlr (const EntMdlr &otro)
 Copy constructor.

EntMdlroperator= (const EntMdlr &otro)
 Assignment operator.

virtual void set_indice (const size_t &i)
 Assigns the objects index for its use in VTK arrays(see numera in Set).

size_t getIdx (void) const
 Returns the index of the object for it use in VTK arrays.

bool TieneNodos (void) const

virtual size_t getNumNodeLayers (void) const

virtual size_t getNumNodeRows (void) const

virtual size_t getNumNodeColumns (void) const

virtual size_t getNumElementLayers (void) const

virtual size_t getNumElementRows (void) const

virtual size_t getNumElementColumns (void) const

virtual NodeGetNodo (const size_t &i=1, const size_t &j=1, const size_t &k=1)
 Returns a pointer to the node which indexes are being passed as parameters.

virtual const NodeGetNodo (const size_t &i=1, const size_t &j=1, const size_t &k=1) const
 Returns a pointer to the node which indexes are being passed as parameters.

NodegetNearestNode (const Pos3d &p)
 Returns the node closest to the point being passed as parameter.

const NodegetNearestNode (const Pos3d &p) const
 Returns the node closest to the point being passed as parameter.

ID getNodeIndices (const Node *) const
 Returns the indexes of the node being passed as parameter.

virtual ElementgetElement (const size_t &i=1, const size_t &j=1, const size_t &k=1)
 Returns a pointer to the element which indexes are being passed as paremeters.

virtual const ElementgetElement (const size_t &i=1, const size_t &j=1, const size_t &k=1) const
 Returns a pointer to the element which indices are being passed as paremeters.

NodebuscaNodo (const int &tag)
 Returns a pointer to the node cuyo identificador is being passed as parameter.

const NodebuscaNodo (const int &tag) const
 Returns a pointer to the node cuyo identificador is being passed as parameter.

std::vector< int > getTagsNodos (void) const
 Returns the tags of the nodes.

ElementfindElement (const int &)
 Returns a pointer to the element identified by the tag being passed as parameter.

const ElementfindElement (const int &) const
 Returns a pointer to the element identified by the tag being passed as parameter.

ElementgetNearestElement (const Pos3d &p)
 Returns the element closest to the point being passed as parameter.

const ElementgetNearestElement (const Pos3d &p) const
 Returns the element closest to the point being passed as parameter.

TritrizPtrNodgetTtzNodes (void)

const TritrizPtrNodgetTtzNodes (void) const

TritrizPtrElemgetTtzElements (void)

const TritrizPtrElemgetTtzElements (void) const

SetFilaI GetVarRefFilaI (size_t f=1, size_t c=1, const std::string &nmb="tmp")

SetFilaI GetVarRefFilaI (const RangoIndice &rango_capas, size_t f, size_t c, const std::string &nmb="tmp")

SetFilaI GetVarRefFilaI (const RangoTritriz &rango, const std::string &nmb="tmp")

SetFilaJ GetVarRefFilaJ (size_t capa=1, size_t c=1, const std::string &nmb="tmp")

SetFilaJ GetVarRefFilaJ (size_t capa, const RangoIndice &rango_filas, size_t c, const std::string &nmb="tmp")

SetFilaJ GetVarRefFilaJ (const RangoTritriz &rango, const std::string &nmb="tmp")

SetFilaK GetVarRefFilaK (size_t capa=1, size_t f=1, const std::string &nmb="tmp")

SetFilaK GetVarRefFilaK (size_t capa, size_t f, const RangoIndice &rango_cols, const std::string &nmb="tmp")

SetFilaK GetVarRefFilaK (const RangoTritriz &rango, const std::string &nmb="tmp")

void fix (const SFreedom_Constraint &)
 Fixes the nodes of the set.

virtual int getMEDCellType (void) const
 Interfaz con el formato MED de Salome.

virtual int getVtkCellType (void) const
 Interfaz con VTK.

void setGenMesh (bool m)
 Returns true if the points begins or ends in the line.

const bool & getGenMesh (void) const
 Returns true if the points begins or ends in the line.

virtual double DistanciaA (const Pos3d &pt) const
 Returns the distance to the position being passed as parameter.

Vector getSimpsonWeights (const std::string &, const std::string &, const size_t &f=1, const size_t &c=1, const size_t &n=10) const
 Return Simpson's weights.

void BorraPtrNodElem (void)
 Clears pointer to nodes and elements.

virtual ~EntMdlr (void)
 Destructor.

- Public Member Functions inherited from XC::SetEstruct
 SetEstruct (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
 Constructor.

 SetEstruct (const SetEstruct &otro)
 Copy constructor.

SetEstructoperator= (const SetEstruct &otro)
 Assignment operator.

size_t getNumberOfNodes (void) const

size_t getNumberOfElements (void) const

bool In (const Node *) const
 Returns true if the nodo belongs to the set.

bool In (const Element *) const
 Returns true if the element belongs to the set.

bool EsFilaI (void) const
 Returns true if only the I index varies.

bool EsFilaJ (void) const
 Returns true if only the J index varies.

bool EsFilaK (void) const
 Returns true if only the K index varies.

bool EsCapaICte (void) const
 Returns true if only J and K indices varies.

bool EsCapaJCte (void) const
 Returns true if only J and K indices varies.

bool EsCapaKCte (void) const
 Returns true if only I and J indices varies.

size_t Dimension (void) const
 Return the dimension of the range (0,1,2 or 3). Zero if the range is empty, 1 if there is more than one layer, 2 if there are more than one row and three if there are more than one column.

std::string GetStrTipo (void) const
 Returns the set type filaI, filaJ, filaK, capaICte,...

NodegetNodeI (const size_t &i)

NodegetNodeIJ (const size_t &i, const size_t &j)

NodegetNodeIJK (const size_t &i, const size_t &j, const size_t &k)

ElementgetElementI (const size_t &i)

ElementgetElementIJ (const size_t &i, const size_t &j)

ElementgetElementIJK (const size_t &i, const size_t &j, const size_t &k)

std::set< int > getNodeTags (void) const
 Returns the tags of the nodes.

boost::python::list getNodes (void)

std::set< int > getElementTags (void) const
 Returns the tags of the elements.

boost::python::list getElements (void)

ElementEdges getElementEdges (void)
 Returns the element edges with both end nodes belong to the nodes of the set.

- Public Member Functions inherited from XC::SetBase
 SetBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
 Constructor.

const IDgetIdNodeTags (void) const
 Returns the tags of the nodes en un vector de enteros.

const IDgetIdElementTags (void) const
 Returns the tags of the elements en un vector de enteros.

virtual bool In (const Pnt *) const
 Returns true if the point belongs to the set.

virtual bool In (const Edge *) const
 Returns true if the edge belongs to the set.

virtual bool In (const Face *) const
 Returns true if the surface belongs to the set.

virtual bool In (const Body *) const
 Returns true if the body belongs to the set.

virtual bool In (const UniformGrid *) const
 Returns true if the «uniform grid» belongs to the set.

void resetTributarias (void) const
 Reset tributary areas (or lengths, or volumes) for the nodes that are connected to the set elements.

void calculaLongsTributarias (bool initialGeometry=true) const
 Calcula las longitudes tributarias correspondientes a cada nodo of the elements of the set.

void calculaAreasTributarias (bool initialGeometry=true) const
 Calcula las áreas tributarias correspondientes a cada nodo of the elements of the set.

void calculaVolsTributarios (bool initialGeometry=true) const
 Calcula los volúmenes tributarios correspondientes a cada nodo of the elements of the set.

- Public Member Functions inherited from XC::EntMdlrBase
 EntMdlrBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
 Constructor.

 EntMdlrBase (const EntMdlrBase &otro)
 Copy constructor.

EntMdlrBaseoperator= (const EntMdlrBase &otro)
 Assignment operator.

const PreprocessorGetPreprocessor (void) const

PreprocessorGetPreprocessor (void)

size_t GetTag (void) const
 Return the object identifier in the model (tag).

PntBuscaPnt (const size_t &)
 Return a pointer to the point identified by the tag being passed as parameter.

const PntBuscaPnt (const size_t &) const
 Return a const pointer to the point identified by the tag being passed as parameter.

EdgeBuscaEdge (const size_t &)
 Return a pointer to the edge identified by the tag being passed as parameter.

const EdgeBuscaEdge (const size_t &) const
 Return a pointer to the edge identified by the tag being passed as parameter.

FaceBuscaFace (const size_t &)
 Return a pointer to the face identified by the tag being passed as parameter.

const FaceBuscaFace (const size_t &) const
 Returns a pointer to the face identified by the tag being passed as parameter.

virtual int sendSelf (CommParameters &)
 Send objects through the channel being passed as parameter.

virtual int recvSelf (const CommParameters &)
 Receive objects through the channel being passed as parameter.

- Public Member Functions inherited from XC::MovableObject
 MovableObject (int classTag, int dbTag)
 Constructor.

 MovableObject (int classTag)
 Constructor.

 MovableObject (const MovableObject &otro)
 Copy constructor.

MovableObjectoperator= (const MovableObject &otro)
 Operacdor asignación.

int getClassTag (void) const
 Returns the tag de la clase.

int getDbTag (void) const
 Returns the tag para la database.

int getDbTag (CommParameters &)
 Returns the tag para la database.

void setDbTag (int dbTag)
 Asigna el tag para la database.

void setDbTag (CommParameters &)
 Asigna, sólo si es preciso, el tag para la database.

virtual int setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int updateParameter (int parameterID, Information &info)

virtual int activateParameter (int parameterID)

virtual int setVariable (const std::string &variable, Information &)
 Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int getVariable (const std::string &variable, Information &)

- Public Member Functions inherited from XC::DistributedBase
 DistributedBase (void)
 Constructor.

virtual DbTagDatagetDbTagData (void) const
 Returns a vector to store class dbTags.

const int & getDbTagDataPos (const int &i) const
 Returns the data at the i-th position.

void setDbTagDataPos (const int &i, const int &v)
 Sets the data at the i-th position.

void inicComm (const int &dataSize) const
 Initializes communication.


Protected Member Functions

virtual void actualiza_topologia (void)
 Updates topology.

void create_nodes (void)
 Creates nodes.

- Protected Member Functions inherited from XC::EntMdlr
void create_nodes (const TritrizPos3d &)
 Creates nodes at the positions being passed as parameters.

Nodecreate_node (const Pos3d &pos, size_t i=1, size_t j=1, size_t k=1)
 Creates a node at the position being passed as parameter.

bool create_elements (meshing_dir dm)
 Creates elements on the nodes created in create_nodes.

Pntcreate_point (const Pos3d &)
 Creates a point at the position being passed as parameter.

void create_points (const MatrizPos3d &)
 Creates points at the positions being passed as parameters.

SetEstructcreate_set_fila (const RangoTritriz &, const std::string &)
 Creates a set that corresponds to a row of nodes and elements.

void clearAll (void)
 Clears object contents.

- Protected Member Functions inherited from XC::SetEstruct
void add_elements (const TritrizPtrElem &)
 Adds to the model the elements being passed as parameters.

NodePtrSet getNodePtrSet (void)
 Returns the pointers to the set nodes.

- Protected Member Functions inherited from XC::EntMdlrBase
const Preprocessorget_preprocessor (void) const
 Return a pointer to the preprocessor.

Preprocessorget_preprocessor (void)
 Return a pointer to the preprocessor.

bool check_preprocessor (void) const
 Check for preprocessor.

int sendIdsEtiquetas (const int &, const int &, CommParameters &)
 Send labels through the channel being passed as parameter.

int recvIdsEtiquetas (const int &, const int &, const CommParameters &)
 Receive labels through the channel being passed as parameter.

int sendData (CommParameters &)
 Send members through the channel being passed as parameter.

int recvData (const CommParameters &)
 Receive members through the channel being passed as parameter.


Friends

class Edge


Additional Inherited Members

- Protected Attributes inherited from XC::EntMdlr
TritrizPtrNod ttzNodes

TritrizPtrElem ttzElements

- Protected Attributes inherited from XC::EntMdlrBase
LabelContainer labels
 Label container.


Detailed Description

Punto (KPoint).

Member Function Documentation

void XC::Pnt::borra_linea ( Edge l) const

Erases the line being passed as parameter in the list of lines that begin or end in the point.

void XC::Pnt::inserta_linea ( Edge l) const

Inserts the line being passed as parameter in the list of lines that begin or end in the point.

void XC::Pnt::Mueve ( const Vector3d &  desplaz)

Moves the point (used by XC::Set only).

Parameters
desplazdisplacement vector.
const std::string & XC::Pnt::NombresEdgesTocan ( void  ) const

Returns the names of the surfaces that touch the line (neighbors).

Returns the nombres de las lineas que tocan al punto.


The documentation for this class was generated from the following files:
