Uniform load over shell elements. More...

#include <ShellUniformLoad.h>

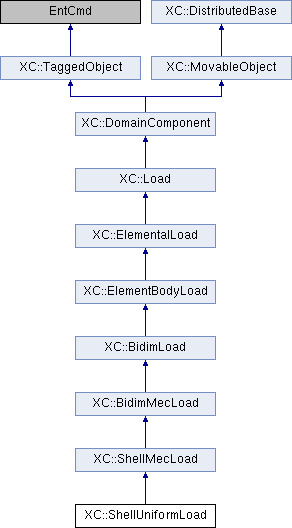

Inheritance diagram for XC::ShellUniformLoad:

Public Member Functions
	ShellUniformLoad (int tag, const double &, const double &, const double &, const ID &theElementTags)

	ShellUniformLoad (int tag, const Vector &Fxyz, const ID &theElementTags)

	ShellUniformLoad (int tag=0)

std::string	Categoria (void) const

int	getType (void)

const double &	Wx (void) const

const double &	Wy (void) const

const double &	Wz (void) const

size_t	getDimVectorFuerza (void) const
	Return the dimension del vector fuerza.

size_t	getDimVectorMomento (void) const
	Return the dimension del vector momento.

const Matrix &	getLocalForces (void) const
	Returns the componentes de los vectores fuerza.

const Matrix &	getLocalMoments (void) const
	Returns the componentes de los vectores momento.

void	addReactionsInBasicSystem (const double &, const double &, FVectorShell &) const
	Adds the load al consistent load vector (ver página 108 libro Eugenio Oñate). More...

void	addFixedEndForcesInBasicSystem (const double &, const double &loadFactor, FVectorShell &) const
	?? More...

const Matrix &	getLocalPressures (void) const
	Returns pressure vectors (one for each element) expressed in elemnt local coordinates. Is simply a convenience function that makes the distributedness more explicit.

const Matrix &	getDistributedLocalMoments (void) const
	Returns distributed moments (one for each element) expressed in element local coordinates. Is simply a convenience function that makes the distributedness more explicit.

const Matrix &	getGlobalPressures (void) const
	Returns pressure vectors (one for each element) expressed in global coordinates. Is simply a convenience function that makes the distributedness more explicit.

const Matrix &	getDistributedGlobalMoments (void) const
	Returns distributed moments (one for each element) expressed in global coordinates. Is simply a convenience function that makes the distributedness more explicit.

virtual SVD3d	getResultant (const Pos3d &p=Pos3d(), bool initialGeometry=true) const
	brief Returns load resultant (force and moment integration over the elements).

int	sendSelf (CommParameters &)

int	recvSelf (const CommParameters &)

void	Print (std::ostream &s, int flag=0)
	Imprime el objeto.

Public Member Functions inherited from XC::ShellMecLoad
	ShellMecLoad (int tag, int classTag, const double &Trans, const double &, const double &, const ID &theElementTags)

	ShellMecLoad (int tag, int classTag)

virtual Vector	getLocalForce (void) const
	Returns force expressed in local coordinates.

virtual Vector	getLocalMoment (void) const
	Returns moment expressed in local coordinates.

virtual const Matrix &	getGlobalVectors (const Matrix &) const
	Returns the vectors expressed in global coordinates.

virtual const Matrix &	getGlobalForces (void) const
	Return the fuerza expresada en coordenadas globales.

virtual const Matrix &	getGlobalMoments (void) const
	Returns the momento expresado en coordenadas globales.

Public Member Functions inherited from XC::BidimMecLoad
	BidimMecLoad (int tag, int classTag, const double &Trans, const double &, const double &, const ID &theElementTags)

	BidimMecLoad (int tag, int classTag)

double	getAxial1Component (void)

void	setAxial1Component (const double &d)

double	getAxial2Component (void)

void	setAxial2Component (const double &d)

double	getTransComponent (void)

void	setTransComponent (const double &d)

void	Print (std::ostream &s, int flag=0) const

Public Member Functions inherited from XC::BidimLoad
	BidimLoad (int tag, int classTag, const ID &theElementTags)

	BidimLoad (int tag, int classTag)

void	Print (std::ostream &s, int flag=0) const
	Imprime el objeto.

Public Member Functions inherited from XC::ElementBodyLoad
	ElementBodyLoad (int tag, int classTag, const ID &theElementTags)

	ElementBodyLoad (int tag, int classTag)

	ElementBodyLoad (int classTag)

virtual void	setDomain (Domain *theDomain)
	Asigna a pointer al domain.

virtual void	applyLoad (double loadfactor)

virtual int	removeElement (int tag)
	Removes the element from those affected by the load. If it fails returns -1.

void	Print (std::ostream &s, int flag=0) const
	Imprime el objeto.

Public Member Functions inherited from XC::ElementalLoad
	ElementalLoad (int tag=0, int classTag=0)

	ElementalLoad (int tag, int classTag, const ID &)

int	numElements (void) const

int	setElementTags (const ID &theEleTags)

virtual const ID &	getElementTags (void) const

Public Member Functions inherited from XC::Load
	Load (int tag, int classTag)
	Constructor.

virtual void	setLoadPatternTag (int loadPaternTag)
	Establece el valor del identificador de la hipótesis.

virtual int	getLoadPatternTag (void) const
	Returns the valor del identificador de la hipótesis.

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the domain.

const Preprocessor *	GetPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	GetPreprocessor (void)
	Returns (if possible) a pointer to the preprocessor.

void	set_indice (const size_t &i)
	Set the index for the object (see numera in Set). This index is used on VTK arrays.

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

Protected Member Functions inherited from XC::BidimMecLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElementBodyLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElementalLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::Load
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor.

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Additional Inherited Members
Protected Attributes inherited from XC::BidimMecLoad
double	Trans
	Transverse load.

double	Axial1
	Axial load on axis 1.

double	Axial2
	Axial load on axis 2.

Protected Attributes inherited from XC::ElementalLoad
ID	elemTags
	Tags of loaded elements.

Detailed Description

Uniform load over shell elements.

Member Function Documentation

void XC::ShellUniformLoad::addFixedEndForcesInBasicSystem	(	const double &	area,
		const double &	loadFactor,
		FVectorShell &	q0
	)		const

virtual

??

Parameters

area	Area of the element.
loadFactor	Load factor.
q0

Reimplemented from XC::ShellMecLoad.

void XC::ShellUniformLoad::addReactionsInBasicSystem	(	const double &	area,
		const double &	loadFactor,
		FVectorShell &	p0
	)		const

virtual

Adds the load al consistent load vector (ver página 108 libro Eugenio Oñate).

Parameters

area	Area of the element.
loadFactor	Load factor.
p0	element load vector.

Reimplemented from XC::ShellMecLoad.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/load/plane/ShellUniformLoad.h
/usr/local/src/prg/xc/src/domain/load/plane/ShellUniformLoad.cc
